Applications available on RM4 DIN rail mount instruments



General Notes

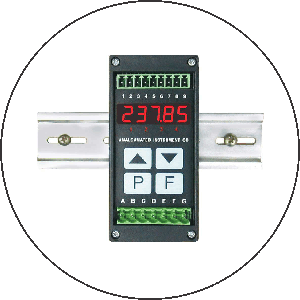

The instruments in the RM4 DIN Rail Mount range are equipped with a 5 digit LED display with keypad and alarm LEDs. 2 setpoint relays are fitted as standard.

Various retransmission options, power supply options & additional relays are available.

See also the non-microprocessor based RM3 range of instruments.

Applications available in RM4 DIN Rail mount monitors

• DC Analog input

  • ±20mA, 4-20mA, ±100mV, ±1V, ±10V or ±100V
  • 3-wire slidewire
  • 4 channel analog input with arithmetic functions
  • Totaliser with analog input

• Pulse input - Rate, total, grand total

• Weight, load, force, pressure

• pH

• ORP (Redox)

• Conductivity

• 50 point lineariser

• 3-wire slidewire

• Quadrature encoder input

• BCD, Binary or Gray Code input to SSI

• Serial Data Input

  • RS232
  • RS485 including arithmetic operations
  • RS422
  • Serial Current Loop
  • SSI (Synchronous Serial Interface)

• SSI (Synchronous Serial Interface)

• Temperature measurement

• AC Voltage

• AC Current

AIC HOME

DIN rail mount instruments and monitors are designed to fit into compact spaces. The AIC DIN rail instrumentation is available for most applications and is available with a wide range of supply voltage and output options. The display is a standard 5 digit LED display and programming and setpoint control is achieved by front panel pushbuttons without the need for special tools or setup equipment.
